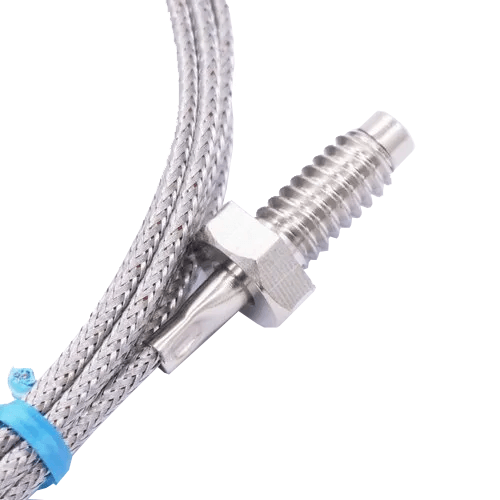

R Type Thermocouple
| Temperature Range | 0 to 1300 deg C |
| Accuracy | +/- 1.5 deg C or +/- 0.25% |
| Class | Class 2 |
| Probe Material | Stainless Steel |
| Application | Industrial |
| Assembly | Thermocouple Probe |
| Mount | Bolt Type |
| Probe Termination | Lead Wire |
| Probe Diameter | 0.5 - 8 mm |
| Probe Length | 0 - 150 mm |
Relying on our expertise in this domain, we are engaged in offering R Type Thermocouple Temprature Sensor to our respected clients.
Type R thermocouple has superior mechanical properties to Type S and is recommended for continuous use in oxidizing and inert atmospheres around temperatures up to 1400°C and intermittently up to 1600°C. However, it should not be used in vacuum, reducing or metallic vapour atmospheres unless properly protected with clean high purity (>99.5%) Alumina insulators and protection tubes. Among precious metal thermocouples, Type R is most widely used.
Temperature Range
- Thermocouple grade wire, −58° to 2,700°F (−50 to 1,480°C)
- Extension grade wire, −32° to 392°F (0 to 200°C)
- Accuracy (whichever is greater):
- Standard: ± 1.5C or ± .25%
- Special Limits of Error: ± 0.6C or 0.1%
