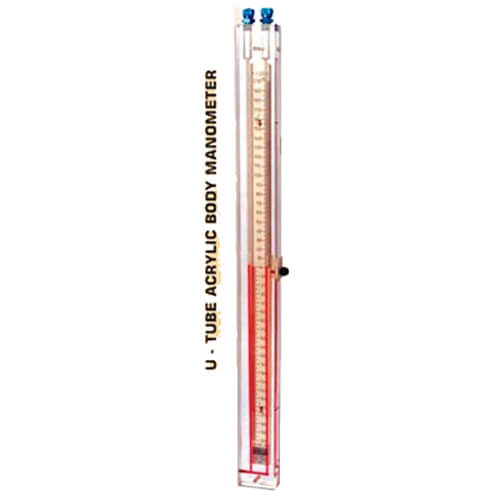

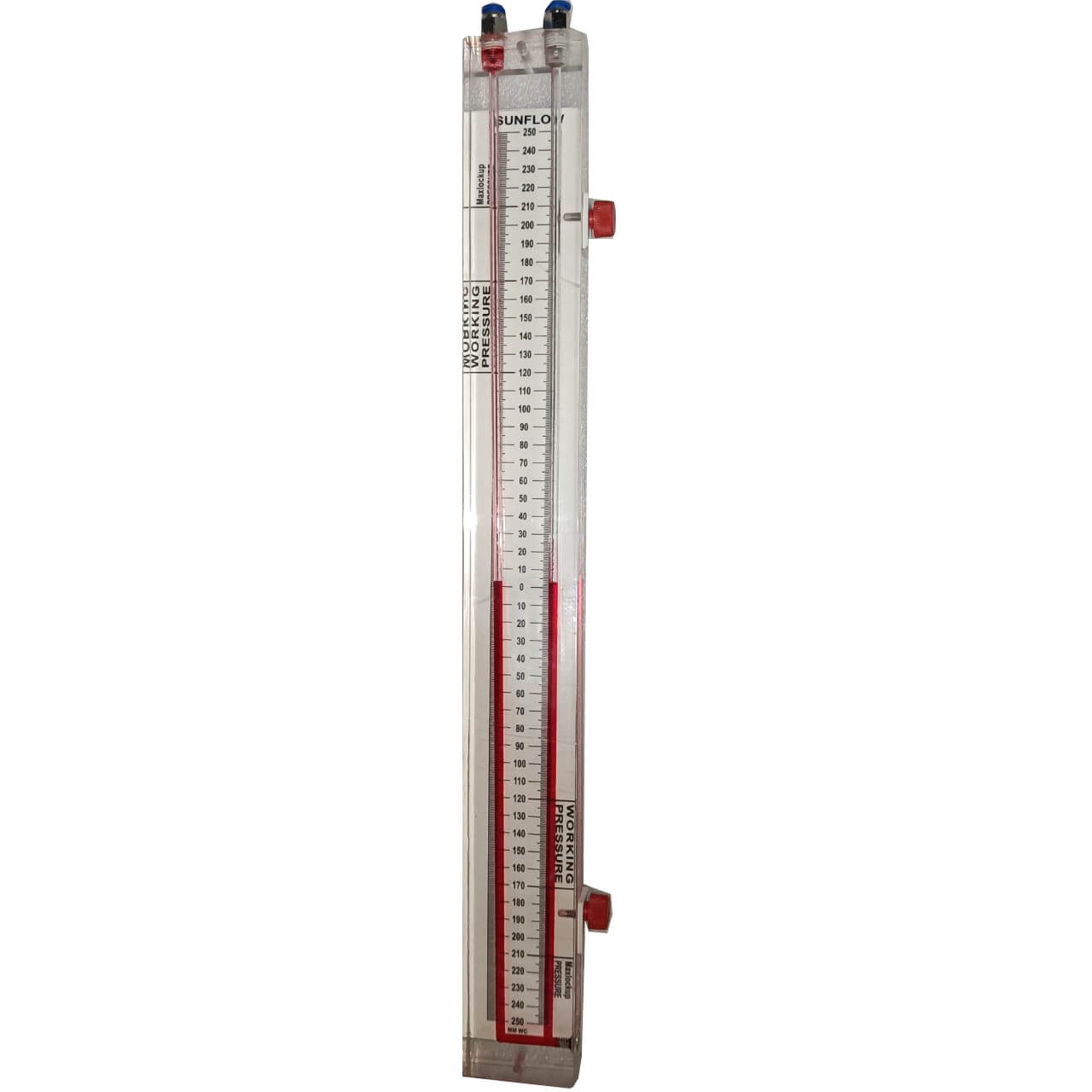

Acrylic Body U Tube Manometer

Type	U Tube
Measuring Range	300-0-300 MM HG/WC
Connection Type	Screwed Female
Connection Size	1/4 icnh BSP
Accuracy	0.1 TO 0.2%
Mounting	Wall
Manometer Fluid	Red Gauge Oil
Temperature (Deg. Celsius)	70 DEG,C
Series	SF.ABUTM.303
Resolution	1 MM
Brand	SUNFLOW
Model	SF

Model No. SF/ABUTM/303

Sun Flow solid acrylic body portable manometers are fabricated from 1".Thick acrylic plastic solid block, virtually unbreakable stable and free from distortion. PVC plastic engraved scale, zero adjustment knob level bottle and panel mounting plate are provided with the manometer.

Range in mm. Water Gauge (wg/wc/mmhg)

MANOMETER BODY	MANOMETER IS FABRICATED IN 25 MM/32 MM THICK (PMMA)TRANSPARENT ACRYLIC CLEAR SOLID BLOCK VIRTUALLY UNBREAKABLE STABLE AND FREE FROM DISTORTRION
Scale	2.5 mm thick Milky white Acrylic Scale, with Black WITH SCREEN PRINTING LETTERS graduated in mm
MANOMETRIC FLUID	RED GAUGE OIL .SP.GR.0.823
END CONNECTION	1/4"BSP( F ) OR PVC NOZZLE TYPE.
PAKING	NEOPRINE/PTFE.
MOUNTING	WALL PANEL & FLUSH MOUNTING HOLES
ARRANGEMENT	ZERO ADJUSTING KNOB .LEVEL BULB.
ACCURACY	+/- 0.25%,+/-0.1% OF F.S.D OR BETTER.
TEST PRESSURE	1.5 TIME OF OPERATING PRESSURE.
TEMPERATUE	BELOW 70 DEG.C

Range in mmwc	scale length	minimum division
50-50 mmwc	100	1
75-0-75 mmwc	150	1
100-0-100 mmwc	200	1
125-0-125 mmwc	250	1
150-0-150 mmwc	300	1
175-0-175 mmwc	350	1
200-0-200 mmwc/250-0-2500/300-0-300 MM	400/500/600	1
