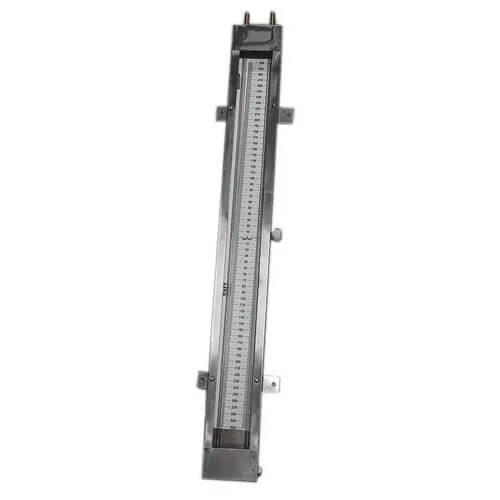

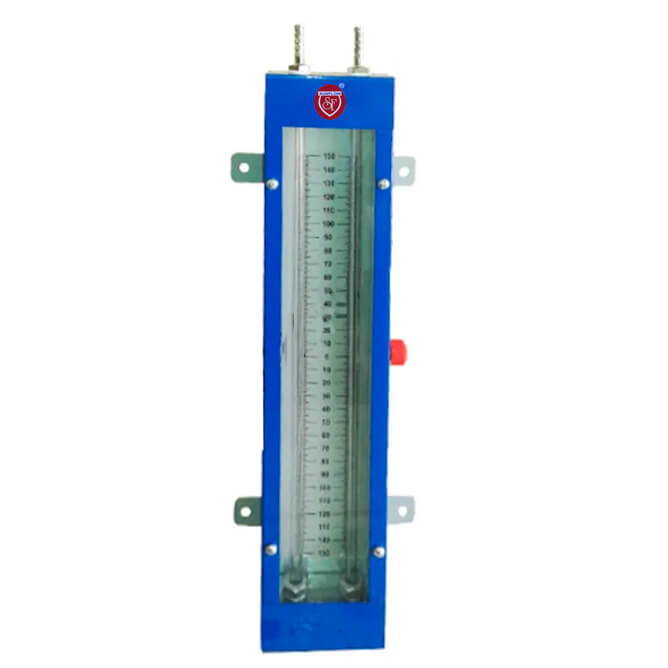

U Tube Manometer

Meauring Range	3000-0-300 MM H2O
Connection Type	Nozzle Type
Connection Size	1/4 icnh BSP
Tube	Glass
Usage/Application	OIL, CHEMICAL, PHARMACEUTICAL, TEXTILES ETC
Mounting	Wall
Brand	SUNFLOW
Accuracy	0.1% of FS
Manometer Fluid	Water
Casing Material	Mild Steel ,Stainless Steel ,Aluminium

sunflow u tube manometer are used for precision measurment of pressure, vacuum and differential pressure where certain accuracy is required. Scales are available in inches, mm, kg/cm2, psig, bar, mbar, pa, kpa & mm or inches of water calibrated with mercury / atb liquid with /- 0. 1% accuracy. Calibration traceable to iso - 9000

u-tube manometer sunflow u-tube type primary standard manometer used for prescision measurement of pressure, vaccum, differential pressure, and flow measurement in plants & labs where certain accuracy is required.

Specification

body casing	m. S. /aluminium casing from three side and aluminium cover with transparent acrylic front
metering tube	special uniform bore thick walled borosilicate glass tube
finishing	industrial grade painted /powder coated
packing	teflon/neoprene/viton/silicon
scale	acrylic with black colour screen printing lining and numbering
range	mm of wc /mm of hg/inches/mbar/kpa/pa or calibrated scale using with different sp. Gravityfluid.
manometer fluid	water/mercury/atb liquid sp. Gr. 2. 96
wetted part	m. S. Aluminium, ss, pp, pvc
end connection	1/4:nsp/npt/ (f) or nozzle
mounting	wall panel /flush or standard mounting
arrangement	drain plug,filling plug,zero adjusting knob
accuracy	+/-0/25%,+/-0. 1% of f. S. D. Or better.
test pressure	1. 5 time of operating pressure
max. Temperature	90 deg. C extra depend on manometric fluid

range in mmwc	l inches	w inches	b inches
100-0-100 mmwc	13	3. 5"	2"
150-0-150 mmwc	17	"	"
200-0-200 mmwc	21	"	"
250-0-250 mmwc	25	"	"
400-0-400 mmwc	37	"	"
500-0-500 mmwc	46	"	"
600-0-600 mmwc	53	"	"
750-0750 mmwc	65	"	"
1000-0-1000 mm	85	"	"
1250-0-1250 mm	105	"	"
1500-0-1500 mm	125	"	"
