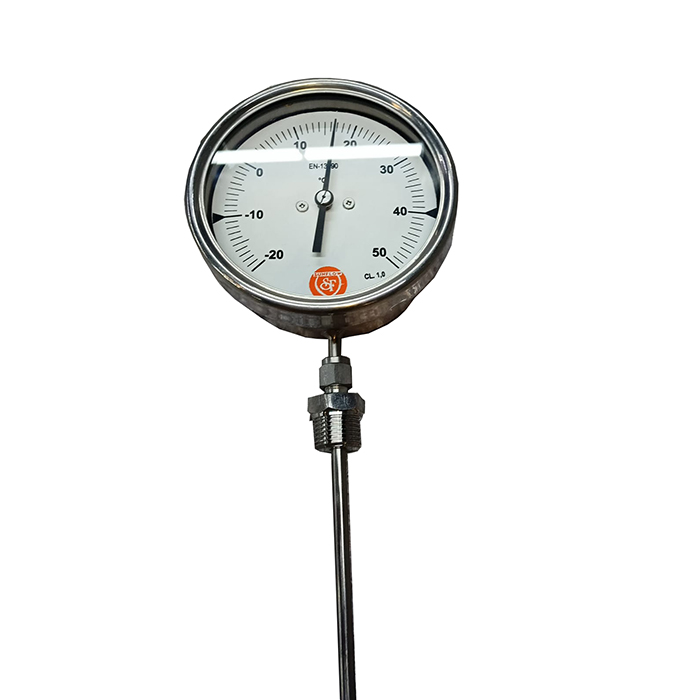

Sunflow temperature gauges are ideal for most the rugged industrial applications, offering bimetal thermometers with hermetically-sealed cases to prevent damage from the weather and dust sunflow bimetal type temperature gauge are made of two cold-welded metal strips with different thermal expansion coefficient.

They can be used in the following applications: chemical, petro chemical, gas and oil, food and pharmaceutical.

Technical Specification

• Type: Bimetal
• Dial Size: 3"/4"/6"(75 mm/100 mm/150 mm)
• Range: 0-600 DegreeC
• Process Connection: 1/4", 1/2,"3/4", 1" Threaded Bsp/ Npt
• Sensing: Rigid Stem type/Flexible Capilery Type
• Stem/Bulb Dia: 6 mm/8 mm/10 mm/12 mm
• Length: Stem Up to 800 Mm/ Capilery Upto 4000 Mm
• Entry: Bottom/ Back
• Accuracy: +- 1% Fsd
• Over Range Limit: 125% Fsd
• Protection: Ip 55 / Ip 65

Material Of Construction

• Case: Ss 304/Ss316/Aluminum
• Dial: Aluminum
• Pointer: Aluminum
• Stem & Bulb: Ss304/Ss316
• Connection: Ss304/Ss316
• Window: Glass 4 mm Thick

Features

• Fast Response, Rugged Connection, Bottom /Back Entry, Hermetically Sealed Case, Accuracy: +-1% Fsd, Ingress Protection: Ip555/Ip65

Application

• Industrial Heating System, Hot Water Boiler, Power Plant, Food & Beverage Industries.
