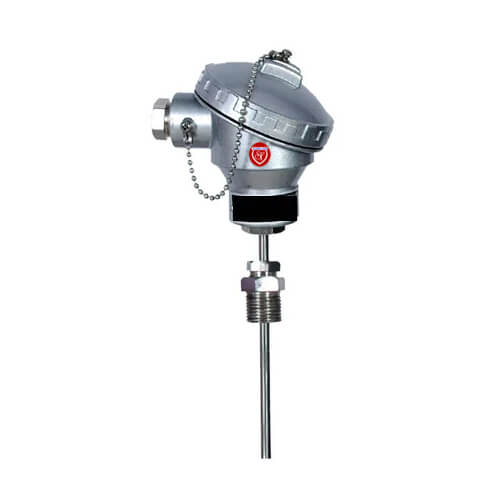

Thermocouple
| Temperature Range | 0-1600 DEG.C |
| Material | Glass, Stainless Steel, Plastic |
Specifications
- Element Type: J, K, R, S, T, E, N, B
- Temperature Range: -200 To + 1800°c
- Configuration: Simplex - 2 Wire / Duplex -4 Wire
- Accuracy: Class A
- Protection: Ip-67
- Insulation: Ceramic Beads & Mgo Filled / Mineral Insulated
- Sheath Outer Dia: 3 mm To 36 mm
- Outer Sheath: Ss 316, Inconel
- Production Sheath: Ss 316, Ss 310, Hrs 446, Ceramic 610, Inconel 600
- Junction: Un - Grounded
- Immersion Length: 25 mm To 10000 mm (Other On Request)
- Connection Head Material: Die Cost Aluminum
- No. Of Entry In Head: Single / Double
- Terminal Block Material: Ceramic With S.s. Base Plate
- Terminal Material: Nickel Plated Brass
- Cable Entry: ½" Et, ¾" Et Bsp / Npt (F)
- Process Connection: ½", 3/8", ¾" Bsp / Npt (M) Adjustable / Flange 25 - 150 mm
