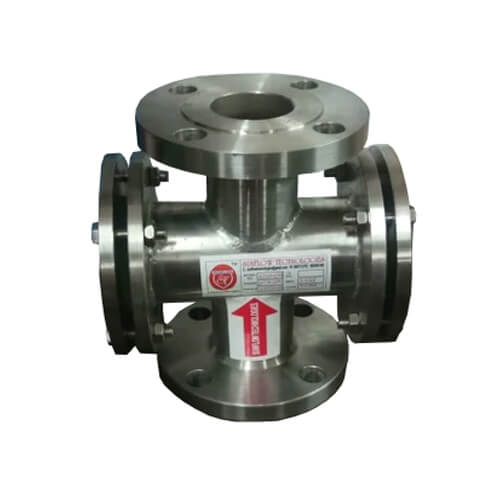

Double Window Sight Flow Indicator
Size |
1/2" To 10" |
Brand |
SUNFLOW |
Display Type |
Analog |
Model |
SF/DWSFI/213 |
Temperature |
300 DEG,C |
Pressure |
25-30 KG/CM2 |
Material |
MS/SS 316/PTFE |
Temperature Range |
250 DEG,C 300 DEG,C |
Model No: Double Window Flow Indicator(SERIES-SF-DWFI-213)
Drip Tube Valve
Drip tube type sight flow indicators are recommended for downward vertical flow.
This model in particular is suitable for distillation apparatus and suc similar applications with intermittent flow. They are designed to allow flow without any obstructions to the flow so that there is no pressure drop across indicator. These indicators can be used for horizontal flow as well.
Size:15,20,25,40,50 MM
NB 80,100,150,200
MM NB 250,300 MM NB
Fabricated : M.S.,SS 304, SS 316 Poly Propylene
Cast
ASTM A 210 Gr WCB
ASTM A 351 Gr CF8
ASTM A 351 Gr CF8M
With/without PTFE OR Rubber Lining
