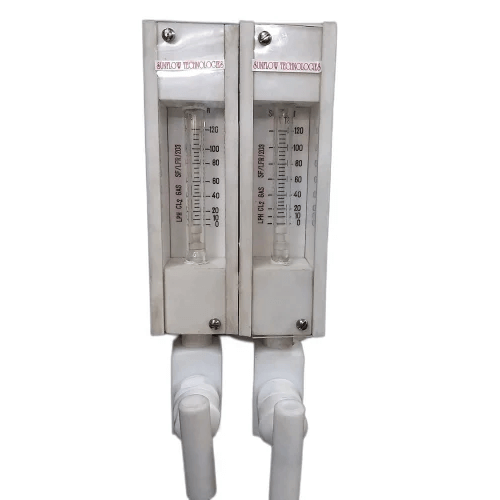

Purge Rotameter

Model Name/Number SF/LFRDP/203
Brand SUNFLOW
Country of Origin Made in India
Viscosity Up to 220 centipoise
Available Materials SS 304, SS 304L, SS316, SS316L.
Design Temperature Up to 100 DegreeC
Application Fluids Air Gases/Water, Liquid, Acid
Measuring Ranges Between 0.6 to 160 LPH / 50-500 ML/MIN of Water at Ambient Temperature. Between 1 to 5000 NLPH / 0.001 to 3.1 SCFM of Air at Ambient Temperature, 760 Torre.
Units Lpm, Lph, cc/min, Ml/min/Scfm.

Performance Specification

Repeatability 10 1
Operating Principle Variable Area Type
Max PRESSURE 8 KG/CM2
ACCURACY. ± 2% F.S.Overall, Calibrated at STP

Environmental Specification

Ambient Temperature 5-60 Deg.c
Ambient Pressure 0.985 to 1.05 Atm.

Physical Specification

Line size 1/4",BSP / NPT Rear WITH FINE CONTROL NEEDLE VALVE &HEX LOCK NUT
Thread Standard Bsp/Npt/Metric /Swagelok/push ftting/Nozzle.
Float Moc Spherical Glass ball/ Conical SS 316/ SS 304/TEFLON /Red pvc
NEEDLE VALVE MOC SS304/ SS 316
End Fitting MOC SS316 /SS 304
BODYCASING SIDE PLATES MOC SS 304 WITH SHINING BUFFED/MS EPOXY COATED/ALUMINIUM WITH TWO TONE POWDER COATED EXCELLENT FINISH
METERING TUBE MOC HEAVY WALL TEMPERED BOROSIL TAPERD GLASS OF 4MM WALL THICKNESS FPG
GLAND PACKING SILICON ,VITON,EPDM,OVERWRAPPING TEFLON COVER CAP
SCALE MILKY WHITE ACRYLIC WITH BLACK SCREEN PRINTING LETTERS/ALUMINIUM ANODIZED/SS ENGRAWING/ CERAMIC INK ETCHED ON METERING TUBE
Mounting Panel Mounting Clamps.,High & Low Flow Alarms.
OVER ALL LENGTH 200 MM
CENTRE TO CENTRE DISTANCE 150 MM
