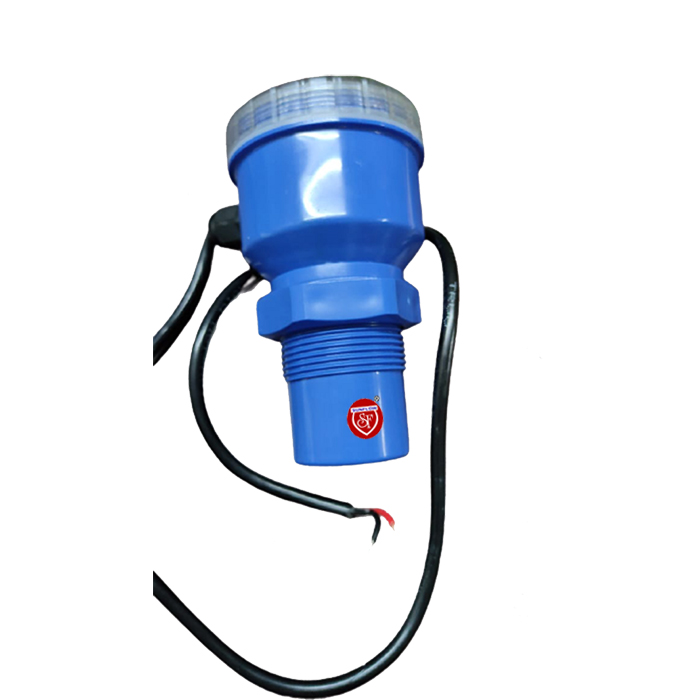

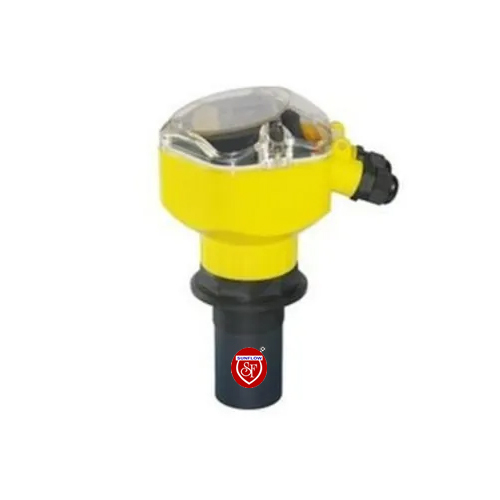

Ultrasonic Level Transmitter
Specifications
- MODEL SF/USLT/411
- Measuring Mode : Level
- Measuring Range : 6, 10 mtrs
- Blanking Distance : 400 mm
- Beam Angle/Frequency : 7°/ 50 KHz
- Supply : 7-28 VDC
- Output (2 wire) : 4-20 mA DC
- Power Consumption : 500mW @ 24VDC
- Display : 4 digit lcd
- Accuracy/ Resolution : 0.25% FS / 1 mm
- Enclosure : industrial plastic
- Cable Gland : M20 x 1.5 mm
- Transducer : PVDF
- Process Connection : 1.5” bsp threaded or m60*2
- Optg. Temperature : -40 to 60°C
- Max. Optg. Pressure : -0.5 to 3 bar
Applications
Storage Tanks, Filter Beds, Scrubber, Flotation Cells, Water/ Waste Water Treatment, Nuclear / Thermal Power Plants, Effluent Treatment Plants, Canals and Irrigation.
