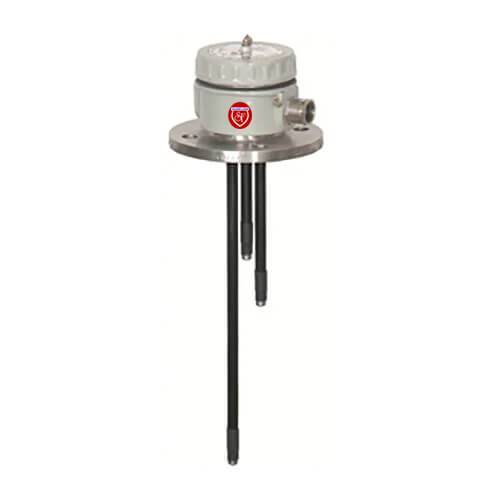

Sunflow Conductivity level switch/controller/indicator Series SF/CLS is one of the versatile and economical instruments for point level indication and controlling of conductive liquids. In the nonintegral version, the complete set comprises of Conductivity Level Probe and Conductivity Level Controller. The Conductivity Level Probe is mounted on top of the tank, whereas the Conductivity Level Controller can be mounted separately and remote from the probe on the wall / penal etc. The Conductivity Level Switch is available in 2,3 or 4 Point Level Sensing cum Controlling. Sunflow Conductivity Level Probe is made up of stainless steel solid rods version or flexible rope /cable version. The Probe Unit has one longest reference (common) probe and 2~4 level sensing probes depending upon 2~4 point level sensing and controlling. Each probe is made up of different lengths as per the level sensing points required. All probes are sheathed with insulating material. The probe in solid SS rods type is suitable for shorter tank depths whereas flexible cable/rope type are suitable for large tank depths. Probes are immersed inside liquid and senses level when liquid makes contact with each probe at different levels. LEVSEN Conductive Level Controller encloses advanced high sensitivity controlling circuitry, level indication LED lamps & relay outputs, which can be used for level indication, pump controlling, dry run prevention etc. Conductivity Level Controller is available in 2,3 or 4 Switching as per different Level Point

Specifications

• Din rail mounted: 2 point level indicator cum controller
• Wall mounted: 2,3 or 4 point level indicator cum controller
• Panel Mounted: 2,3 or 4 point level indicator cum controller

Application

• High / Low Level Alarm Annunciation , Automatic Pump Controls Prevention of tank over flow and dry running of pump for any conductive liquid tank used in industries such as Water, Waste Water, Acids, Salts, Brewery Liquids, Juices, Milk, Liquid Ammonia, Chemical, Condensate etc.
