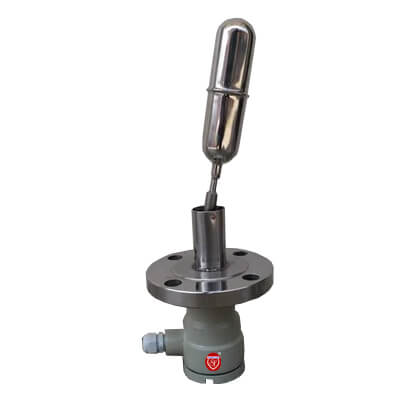

Side Mounted Magnetic Level Switches

Switch Configuration SPDT
Switch Type MICRO SWITCH SPDT
Model No. SF/SMLS/407
Current Rating 230 V AC OR 24 V DC
Working Pressure 20 BAR
Power/Voltage 230VAC
Usage/Application SOLVENT/WATER
Construct SS 316/SS 304/PP
Current Rating (In Amps) Micro Switch rating 5 Amps
Float SS 316
Specific Gravity 0.7 TO 1.85
Material/Body Plastic, Metal
Application water, oil, chemical, solvent etc
Material SS 316/SS 304
Size 1.5" ASA 150 RF OR 2",3",4"
Media Type Liquid
Mounting Options SIDE MOUNTED
Process Temperature 500 DEG,C

MAKE SUNFLOW MODEL SF/SMLS/407

Features

  • Model(SMLS-407-FLP)
  • Process Connection 82mm Sq.flange with 4 nos. bolt holes of 10mm
  • Dia on 82mm PCD.
  • Material of Construction All wetted parts SS 316
  • Float 50mm Dia x 85mm long - SS316L
  • Type of Switch 1 No. Change over Reed Switch.
  • Switch Rating 60VA.
  • Maximum Switching Voltage 230VAC
  • Maximum Working Temperture 150o C
  • MaxiMum Working Pressure 10 kg/cm
  • Differential between make break 10mm, (+-2mm)
  • Specific gravity Down to 0.75
  • Enclosure Flameproof Having CMRI CCOE Certificate
  • Cable Entry 1/2"NPT(F)

Specifications

  • Make SUNFLOW
  • Model SF/SMMLS/407
  • Wetted Part SS304, SS316, PP, PVC, PTFE Coating
  • Process Connection Flanged / Screwed
  • Enclosure Weatherproof / Flameproof
  • Switch Micro Switch rating 5 Amps. , 230VAC
  • Contact NO/NC (Potential Free)
  • Temperature 500C max.
  • Pressure 20 kg/cm max.
  • Application water, oil, chemical, solvent etc

Features

  • High / Low-Level Alarm
  • Automatic Pump Control
  • Safety Inter-Locks Circuits
  • Solenoid Valve Control.
  • Prevention of Tank overflows
  • Pump safeguard against dry running
