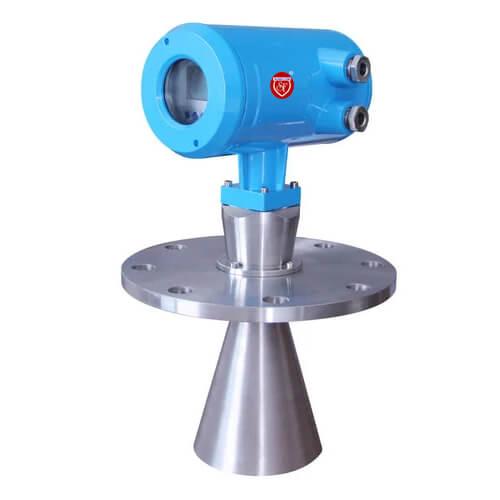

Radar Type Level Transmitter
| Brand | Sunflow |
| Application | Laboratory |
Features
- 2- or 4-wire FMCW technology
- TBF mode for low Er
- Field indicator facility
- High accuracy up to ± 1 mm
- High pressure
- High-temperature range
- Low dead band
- Explosion-proof models
Applications
- Level or volume measurement
- Liquids, powders, granules with Er > 1.5
- Medium with dust, vapor or pressurized gas layers above the
- product surface
- Heavy industrial applications
Specifications
- Power supply: 24 V DC, 24 V AC, 100-120 V AC, 220-240 V AC
- Flange Temperature: -60… 250 °C
- Pressure Max: 0….64 bar
- Measuring range: up to 40 m (100 m)
- Analog Output: 4 - 20 mA, HART
- Communication: HART, Profibus PA, FF, Modbus (RS485)
- Protection: IP 66/67
- ATEX Approval: II 1/2 G EEx de IIC T6...T1
- II 2 G EEx de IIC T6...T1
- II 1/2 G EEx de [ia] IIC T6...T1
- II (1)2 G EEx de [ia] IIC T6...T1
- II 1/2 G EEx in IIC T6
