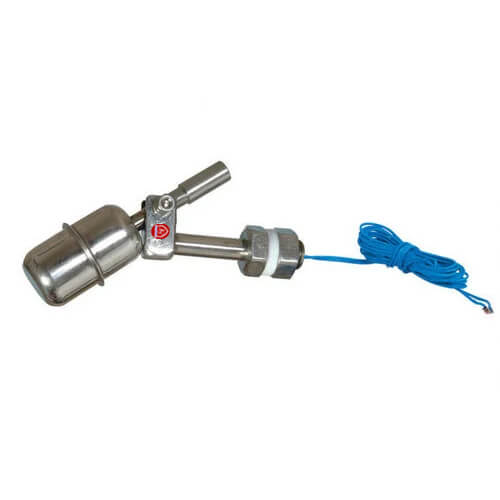

Side Mounted Sub Miniature Level Switch
| Current Rating | 230 V AC OR 24 V DC |
| Media Type | Liquid, Dry Material |
| Material/Body | Plastic, Metal |
| Model No. | SF/MLS/407 |
| Usage/Application | SOLVENTS /WATER |
Specifications
- Material of construction: SS 316.Float diameter-28 mm
- Process connection: 1/4" BSP(M) thread with locknut
- PTFE Teflon gasket
- Mounting Hole diameter:13 mm
- SPST Reed switch rated 100VA, maximum switching voltage-230 VAC/300 VDC, maximum switching current-1 Amp.With 1 Metre long 19/36 SWG Teflon insulated flying extension leads
- Maximum working pressure: 4 kg/sq.cm &Temperature-125 deg C.Specific gravity-0.5
